AB110/REVOX

The Bonassi AB110/REVOX features the AB110 as first stage, a balanced piston system built for endurance and consistent airflow, designed to deliver smooth performance, combined with the Revox second stage, pneumatically balanced for effortless breathing at any depth.

FIRST STAGE: AB110

– Balanced piston system ensures constant intermediate pressure and stable airflow,
even under demanding conditions.
– 5 low-pressure ports, including one located on top of the swivel turret, provide
optimal hose routing options. 2 high-pressure ports support gauge and transmitter
connections.
– Intermediate pressure calibrated between 9.8 and 10 bar
(142–146 PSI) for reliable performance.
– INT version: operates at 230 bar / 3336 PSI.
– DIN version: operates at 300 bar / 4351 PSI.

SECOND STAGE: REVOX

– Pneumatically balanced design delivers smooth, secure breathing at any depth with
adjustable gas flow and Venturi assist control.
– Large exhaust valve and lightweight, compact build ensure comfort and minimal
breathing effort.
– Marine brass, stainless steel spring, and pivot lever provide conglutine durability.
– ANSTI Breathing Performance Test Results at 50.7 mt / 166.3 ft
– Inhale Pressure (mbar): – 10.01 Ext Work of Breathing (J/l): 1.05-1.09
– EAN250 standards Inhale Pressure (mbar): -25 Ext Work of Breathing (J/l): ≤ 3 J/L

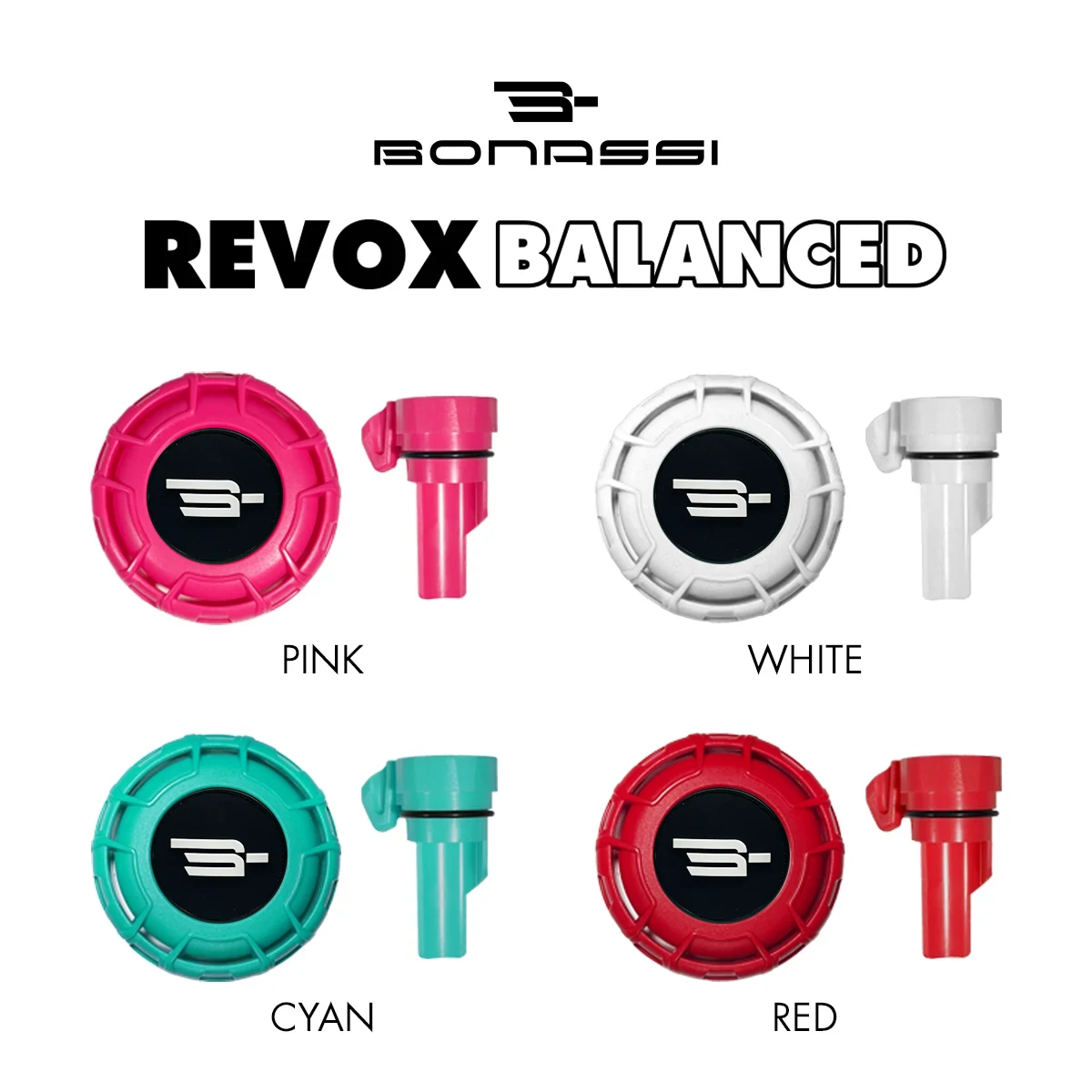

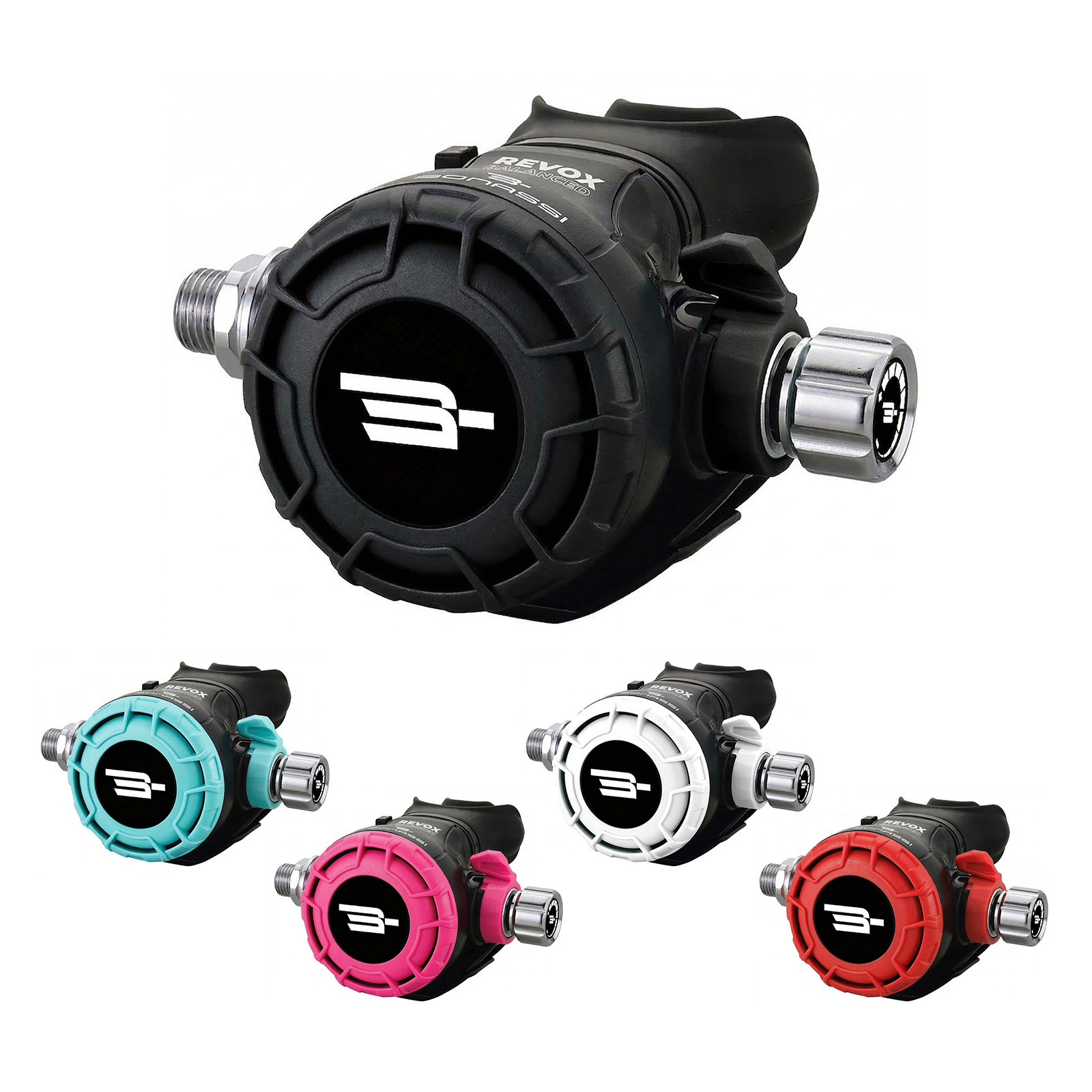

– Includes four interchangeable color kits (white, cyan, red, pink) for quick and easy
customization, in addition to classic black.
