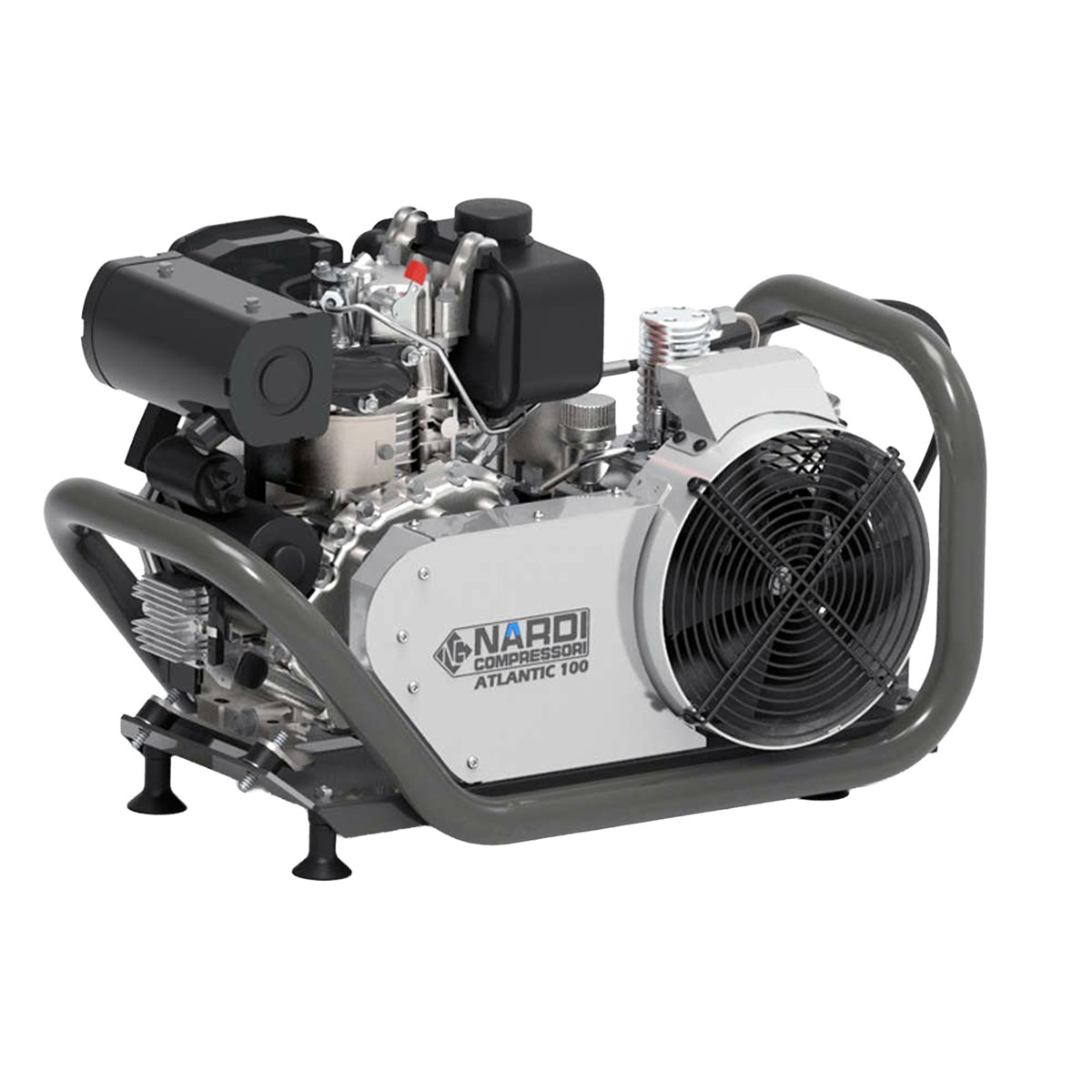

ATLANTIC D 100
The Atlantic D (Diesel Engine) series from NARDI Compressori supplies high-pressure, clean breathable air for diving and other demanding applications. Designed for performance and portability, these compact compressors combine rugged construction with advanced materials to ensure a long service life, even in harsh marine environments.
High-Level Engineering
At the core of every Atlantic unit is a powerful four-stage compressor block, manufactured with high-efficiency aluminum alloys and anti-corrosive components. Thanks to its compact design and reinforced frame, the D100 is ideal for diving expeditions, emergency services, and remote industrial applications. Its ATL purification system ensures that the air delivered meets the strictest quality standards (DIN EN 12021).
Description
Main Features:
Energy Independence: High-performance diesel engine that allows for operation in any location.
Highly Resistant Construction: Chassis designed to withstand transport and rugged use.
Guaranteed Pure Air: Integrated advanced filtration system for safe air.
Fully Equipped: Comes standard with an hour meter, maintenance valve, and non-return valve.
Charging Versatility: Ability to configure the operating pressure according to your needs (3200 psi or 4700 psi).
| Feature | Detail |
| Model | ATLANTIC D 100 |
| Motor | Diesel |
| Flow Rate (F.A.D.) | 3.5 cfm |
| Rotation Speed | 2100 rpm |
| Power | 4.7 hp (3.5 kW) |
| Purification System | ATL |
| Weight | 135 lbs |
| Dimensions (L x W x H) | 32.3 x 14.6 x 19.7 in |
| Maximum Pressure | 4700 psig (330 Bar) |
Informative Note: The charging time for a 10-liter cylinder from 0 to 2900 psi (200 bar) is approximately 20 minutes (±5%). Complies with the DIN EN 12021 air quality directive.
