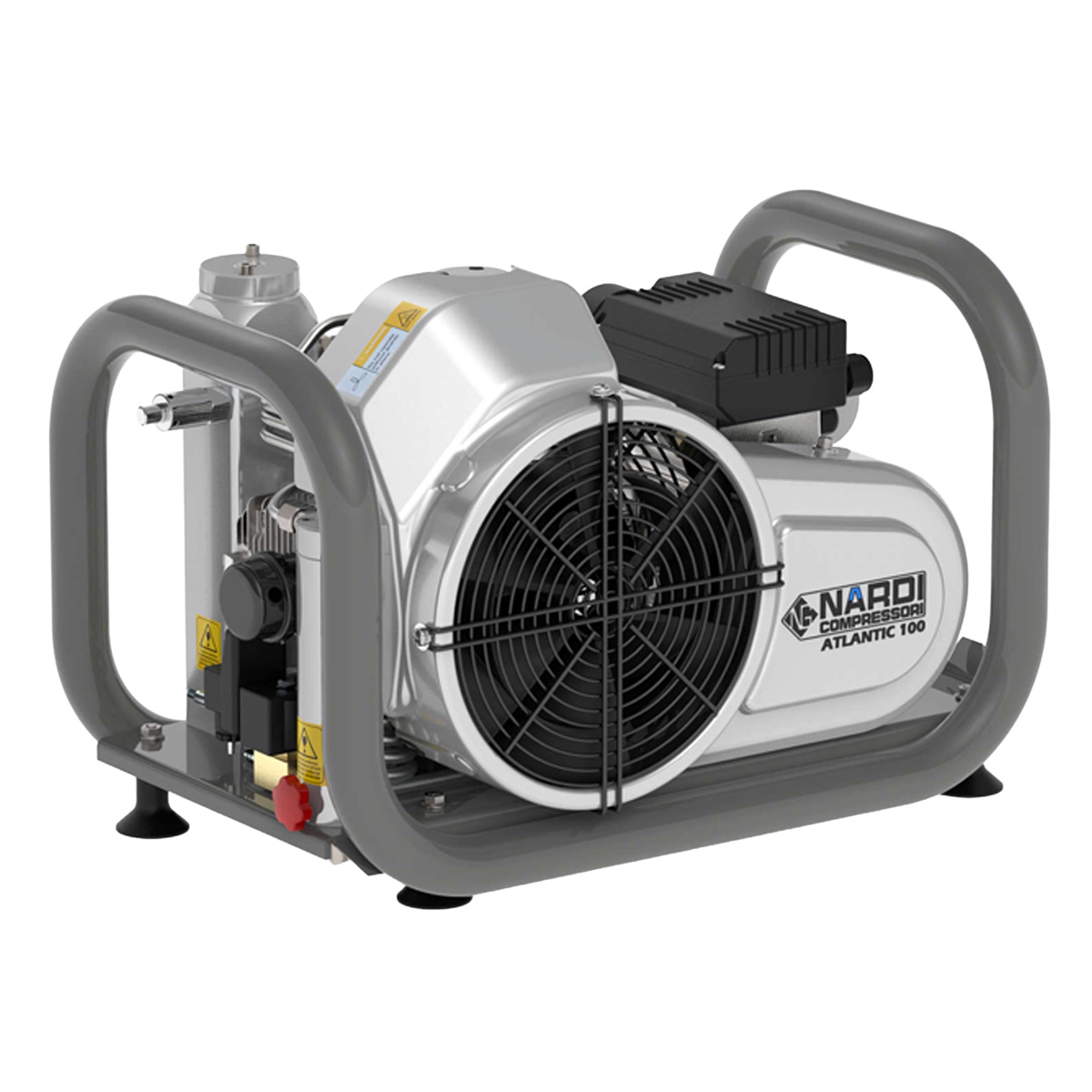

ATLANTIC P
The Atlantic series from NARDI Compressori supplies clean, high-pressure breathable air for diving and other demanding applications. Designed to offer performance and portability, these compact compressors combine rugged construction with advanced materials to ensure a long service life, even in harsh marine environments.
High-Level Engineering
At the core of every Atlantic unit is a powerful four-stage compressor block, manufactured with high-efficiency aluminum alloys and anti-corrosive components.
Description
Main Features:
Superior Thermal Efficiency: Optimized heat dissipation for safe and continuous operation.
European Quality: Crankshaft bearings manufactured in Europe for an extended service life.
Maximum Durability: Cast iron piston rings that guarantee long-term resistance.
Advanced Cooling: Interstage cooling coils manufactured from aluminum and stainless steel.
Ultra-Resistant Chassis: Powder-coated aluminum structure, lightweight and resistant to marine corrosion.
Technical Specifications by Model
All models feature compact dimensions of 22.8 x 16.1 x 16.1 in (58 x 41 x 41 cm) and the ATL purification system (2100 rpm).
| Model | Flow Rate (F.A.D.) | Power | Phase | Weight |
| ATLANTIC P 60/1 | 2.1 cfm (60 L/min) | 2.5 hp (1.85 kW) | Single-phase | 87.1 lb (39.5 kg) |
| ATLANTIC P 100/1 | 3.5 cfm (100 L/min) | 3.0 hp (2.2 kW) | Single-phase | 93.7 lb (42.5 kg) |
| ATLANTIC P 100/1 110V | 3.5 cfm (100 L/min) | 3.0 hp (2.2 kW) | Single-phase | 93.7 lb (42.5 kg) |
| ATLANTIC P 100/3 | 3.5 cfm (100 L/min) | 4.0 hp (3.0 kW) | Three-phase | 92.6 lb (42.0 kg) |
