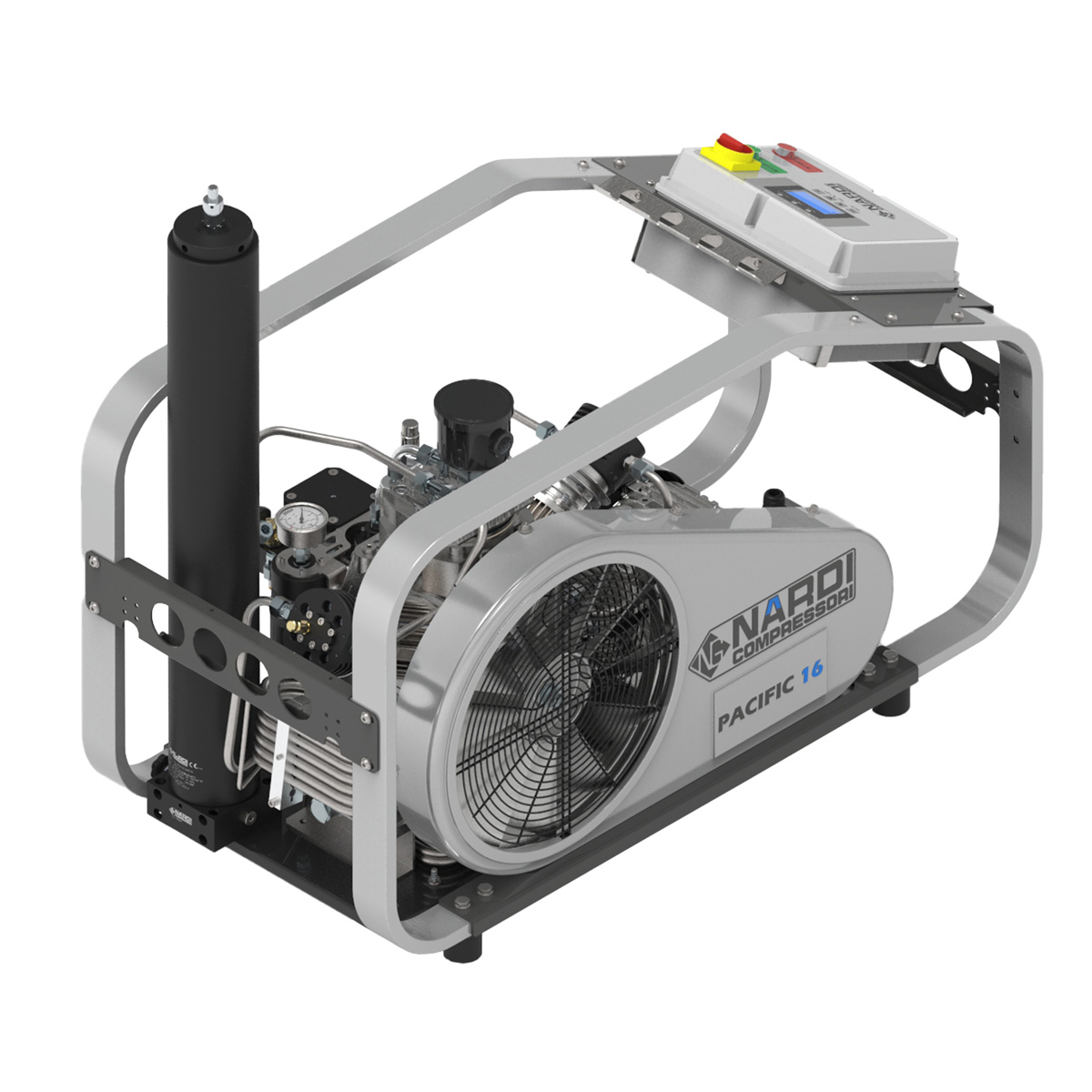

PACIFIC P
El PACIFIC P (Motor Eléctrico) esta diseñado específicamente para uso profesional e intensivo, este compresor eléctrico destaca por su versatilidad y resistencia. Gracias a su diseño de bloque multietapa, los modelos superiores alcanzan caudales de hasta 350 L/min (12.4 cfm), garantizando un llenado rápido y eficiente. Su estructura de marco abierto, ligera y protectora, lo convierte en el equipo ideal tanto para instalaciones fijas como para uso portátil en exteriores, permitiendo una movilidad superior gracias a sus opciones de trolley integrado.
Este compresor ofrece una flexibilidad operativa inigualable. Con la capacidad de configurar un sistema de presión dual, el PACIFIC P puede llenar simultáneamente cilindros de 225 bar y 330 bar. Ya sea para centros de buceo, servicios de emergencia o aplicaciones industriales, la línea PACIFIC P cumple estrictamente con las normativas internacionales DIN EN 12021 y la directiva PED, asegurando que el aire sea puro, seguro y de la más alta calidad. in english please
The PACIFIC P (Electric Motor) is designed specifically for professional and intensive use; this electric compressor stands out for its versatility and resistance. Thanks to its multi-stage block design, the top models reach flow rates of up to 12.4 cfm (350 L/min), guaranteeing fast and efficient filling. Its open-frame structure, lightweight and protective, makes it the ideal equipment for both fixed installations and portable outdoor use, allowing for superior mobility thanks to its integrated trolley options.
This compressor offers unmatched operational flexibility. With the ability to configure a dual pressure system, the PACIFIC P can simultaneously fill 3250 psi (225 bar) and 4700 psi (330 bar) cylinders. Whether for diving centers, emergency services, or industrial applications, the PACIFIC P line strictly complies with international DIN EN 12021 standards and the PED directive, ensuring that the air is pure, safe, and of the highest quality.
Description
Main Features:
Power Range: High-reliability electric motors ranging from 4 to 10 hp (3 kW to 7.5 kW).
Air Delivery: Superior performance with flow rates up to 12.4 cfm (350 L/min).
Voltage Versatility: Compatible with Single-phase and Three-phase configurations (230V, 400V, 440V, 480V) at 50/60 Hz.
Dual Pressure System: Option for simultaneous filling at 3200 psi (225 bar) and 4700 psi (330 bar).
Certified Filtration: Complies with the DIN EN 12021 standard for industrial-grade breathable air.
Ergonomic Design: Lightweight open frame designed for heavy-duty use, with options for handles and a transport trolley for easy mobility.
Advanced Operation: Compatible with an electronic control panel and automatic condensate drain for fully autonomous operation.
Charging Capacity: Standard quadruple filling device with 3.3 ft (1 meter) hoses and DIN or INT (Yoke) connections.
| Feature | Pacific P16 | Pacific P23 | Pacific P27 | Pacific P30 | Pacific P35 |
| FAD (Flow Rate) | 5.7 cfm | 8.1 cfm | 9.5 cfm | 10.6 cfm | 12.4 cfm |
| Max. Working Pressure | 4700 psi | 4700 psi | 4700 psi | 4700 psi | 6100 psi |
| Filtration | PAC1 | PAC1 | PAC1 | PAC1 | PAC2 |
| Stages | 3 | 3 | 3 | 3 | 4 |
| Power · Phase | 4 hp · 1Ø | 5.5 hp · 3Ø | 7.5 hp · 3Ø | 7.5 hp · 3Ø | 10 hp · 3Ø |
| Speed (rpm) | 1350 | 1350 | 1550 | 1450 | 1550 |
| Noise Level (dB) | 74 | 75 | 76 | 75 | 78 |
| Weight | 280 lb | 280 lb | 302 lb | 302 lb | 313 lb |
| Dimensions (L x W x H) | 46.5 x 21.3 x 27.2 in | 46.5 x 21.3 x 27.2 in | 46.5 x 21.3 x 27.2 in | 46.5 x 21.3 x 27.2 in | 46.5 x 21.3 x 27.2 in |
