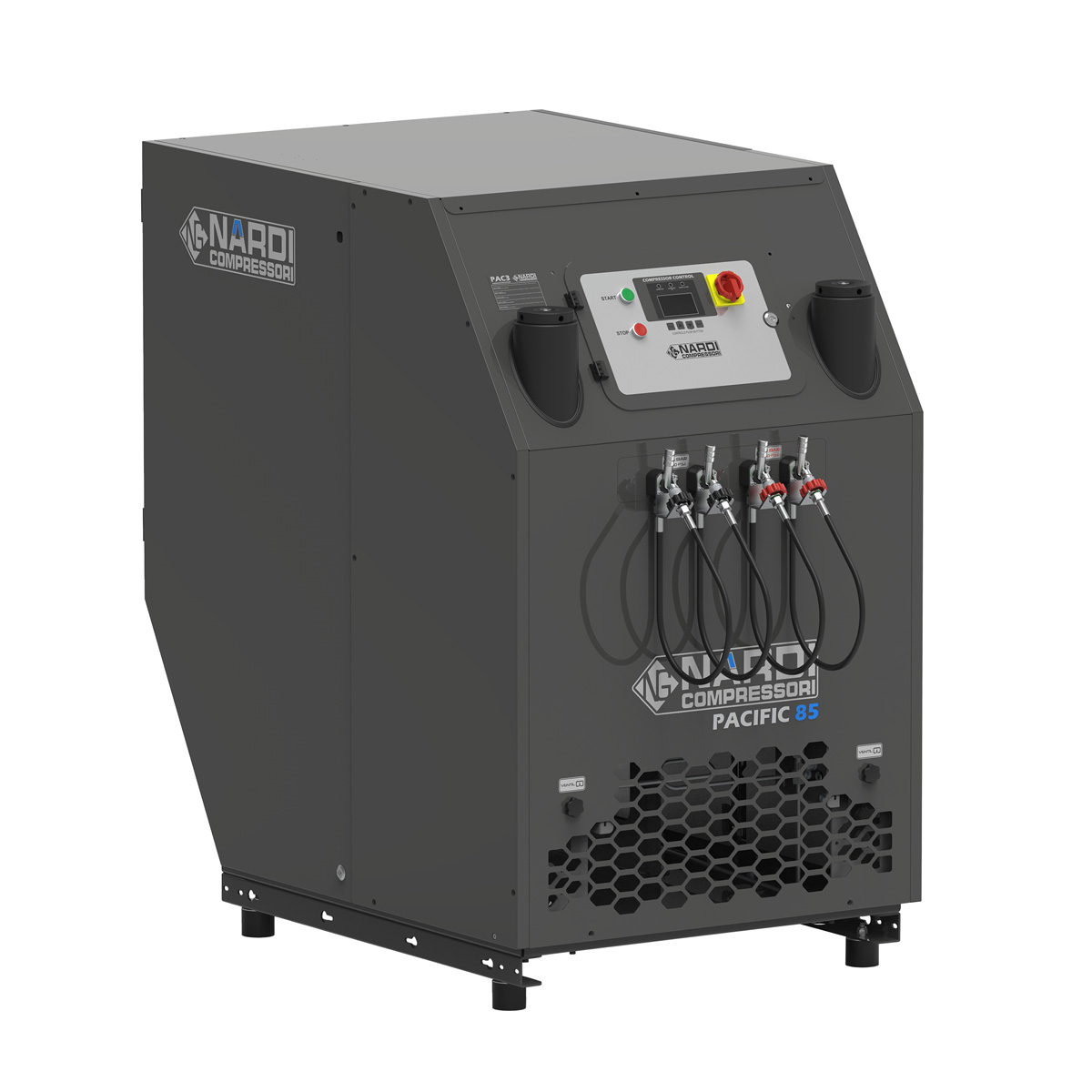

PACIFIC CX
The Pacific CX series (Electric Motor) represents the pinnacle of performance in high-pressure air compression, specifically engineered to operate exceptionally well in demanding environments. This equipment stands out for its compact and quiet design, featuring a high-performance sound-insulated chassis and wing-style ventilation blades that optimize airflow without increasing noise levels.
It is the ideal solution for indoor installations requiring a constant supply of breathing-grade or industrial air, combining power of up to 18.5 kW with an advanced filtration system that ensures total air purity in compliance with the most stringent international standards.
Description
Key Features
Superior Performance: Delivers a free air delivery (FAD) of up to 850 L/min, ideal for high-volume operations.
Heavy-Duty Chassis: Built with durable panels and an internal sound-absorbing lining for exceptionally quiet operation.
Soft Start System: Protects the electrical installation by reducing inrush current during startup, extending the lifespan of breakers and wiring.
Dual Pressure System: Optional capability to fill cylinders at 225 bar and 330 bar simultaneously.
Forced Lubrication: Integrated oil pump ensures optimal cooling and stable performance, even during extended duty cycles.
Smart Safety: Includes an oil level sensor with automatic shutdown to protect the compressor block from catastrophic failure.
Eco-Friendly Management: Features a 12-liter condensate collection tank that prevents soil contamination from oily waste.
Full Certification: Complies with DIN EN 12021 standards and the PED directive, guaranteeing clean, contaminant-free air.
| Specification | Pacific CX50 | Pacific CX60 | Pacific CX68 | Pacific CX85 |
|---|---|---|---|---|
| Free Air Delivery (FAD) | 500 L/min (17.7 cfm) | 600 L/min (21.2 cfm) | 680 L/min (24 cfm) | 850 L/min (30 cfm) |
| Maximum Working Pressure | 330 bar (4,700 psi) | 425 bar (6,000 psi) | 425 bar (6,000 psi) | 425 bar (6,000 psi) |
| Filtration System | PAC3 | PAC3 | PAC3 + PAC3 (Double) | PAC3 + PAC3 (Double) |
| Compression Stages | 3 | 3 | 4 | 4 |
| Motor Power | 11 kW (15 hp) | 11 kW (15 hp) | 15 kW (20 hp) | 18.5 kW (25 hp) |
| Electrical Phase | Three-phase | Three-phase | Three-phase | Three-phase |
| Speed (RPM) | 1,100 | 1,300 | 1,100 | 1,300 |
| Noise Level | 72 dB | 73 dB | 75 dB | 77 dB |
| Equipment Weight | 435 kg (882 lb) | 475 kg (1,047 lb) | 490 kg (1,080 lb) | 590 kg (1,300 lb) |
| Dimensions (L × W × H) | 86 × 128 × 142 cm (33.9 × 50.4 × 55.9 in) | 86 × 128 × 142 cm (33.9 × 50.4 × 55.9 in) | 86 × 128 × 142 cm (33.9 × 50.4 × 55.9 in) | 86 × 128 × 142 cm (33.9 × 50.4 × 55.9 in) |
